BMX racing takes courage. No matter your age, when you load into that starting gate you’ve got to be ready for battle. Win or not this is what makes a hero, and it’s what we’re made of — American built bike parts designed and engineered with laser precision and superhuman strength to let the HERO inside take flight.

Hero Pro, Zach Van Kammen

PRE-ORDER YOUR THUNDERBOLT FORK NOW!

LIMITED PRODUCTION – ONLY 100 AVAILABLE

The third batch of this one-of-a-kind fork is in production now and is very limited. This is your chance to own the future.

Introducing HERO BIKE PARTS — small batch, premium machined parts we make in the USA to better control quality, insure superior craftsmanship, and meet the ever-evolving demands of modern BMX racing. Like our championship winning DAYLIGHT race frames and bikes, HERO BIKE PARTS will be available in an almost unlimited spectrum of ceramic paint as well as the stock gloss black Cerakote with raw logos. Ceramic painted parts will even be offered in your choice of Humble tone-on-tone or Proud high-contrast graphics.

Look for HERO to take flight this fall 2023 and gain the courage to win!

PROTOTYPE TESTING

The Hero Thunderbolt forks were developed with a mix of lab and real world testing and we’ve already have pro riders racing (and winning!) nationals and major events.

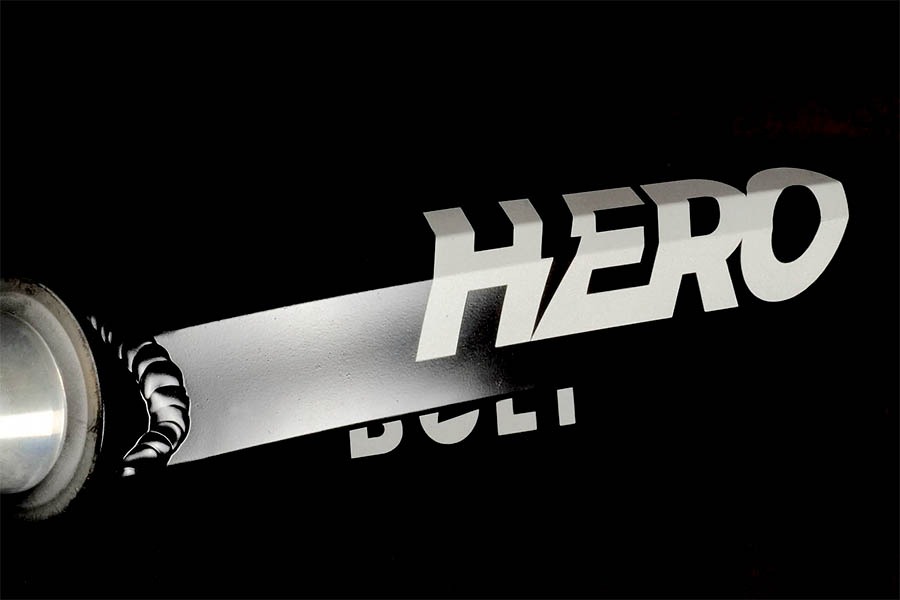

THUNDERBOLT

Aluminum Race Forks

PRECISION MADE IN USA

Compared to all those chunky carbon copies out there, the HERO Thunderbolt with its sleek lines and its machined + welded aesthetic screams American race muscle!

Our one piece steer tube/crown begins as a 3 pound/ 9″ long solid bar of aluminum that is 100% milled to size and spec. The legs are custom extruded and bent tubes, thin-wall and large diameter tubing for strength while saving weight. The coped joints are laser cut — meaning this entire fork is essentially machined with virtually zero gap between the welded elements. Our dramatcally angled drop-out interface is also forward thinking for greater weld area and greater strength. The result will be a ride that’s as stiff as any carbon fork while delievring a smoother feel on the track.

A fork that rides this good needs to look even better so obviously we designed the Thunderbolt to look great with our Daylight frames but also to look great with any frame. But being a Daylight product that also means, in addition to gloss black Cerakote with raw logos, the Hero Thunderbolt can be beautifully custom finished from our almost unlimited spectrum of ceramic colors. We’re even offering two different graphic looks— “Humble” for a subtle tone-on-tone graphic, or “Proud” for a bold, high-contrast style.

  • 170mm tapered steer tube (1-1/8”-1.5“)
  • Alloy top cap/compressor bolt with internal
  • Steer tube threads for the top cap
  • 303mm axle to crown measurement on the 20” fork
  • 20″, OS20, and 24″ are designed around a 1.5-1.85″ tire
  • 26″ and 29″ are designed fit 2.3″ and larger tires
  • OS20 – 333mm, 24”- 354mm, 26”- 395mm, 29”- 429mm
  • Custom aero-shaped fork legs
  • CNC’d 20mm drop outs (available in 10mm (3/8”)
  • Sizes: Pro 20” & 24”
  • 620g (1.37 lbs.)

KELVIN

CNC Aluminum Cranks



  • CNC’d 7075 aluminum arms and spindle
  • Titanium pinch bolts
  • Lightweight but rigid & strong crank design
  • Chainring not included (3-bolt direct mount)
  • Lengths: 165mm, 170mm, 175mm, 180mm
  • Patented aluminum spindle design
  • Compatible BB Type: 24mm outboard
  • Weight: 750g (w/o chainring)

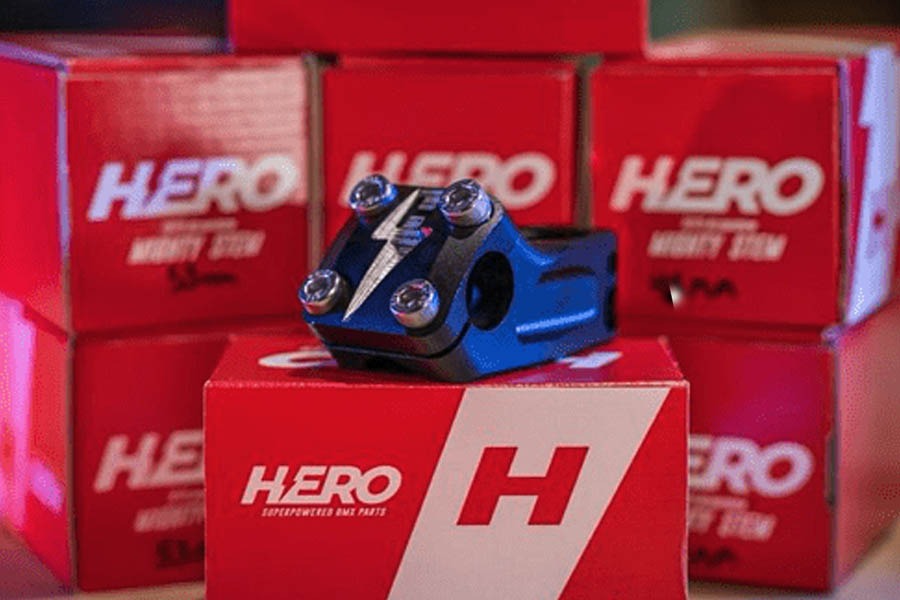

PHOTON

CNC Aluminum Stem



  • CNC’d aluminum body and face plate
  • Titanium or stainless steel bolts
  • 45 degree, 22.2mm (7/8”) bar mount
  • M8 bolts for maximum grip strength
  • Lengths: 48, 53, and 58mm
  • Weight: 240g (53mm w/ Ti bolts)
